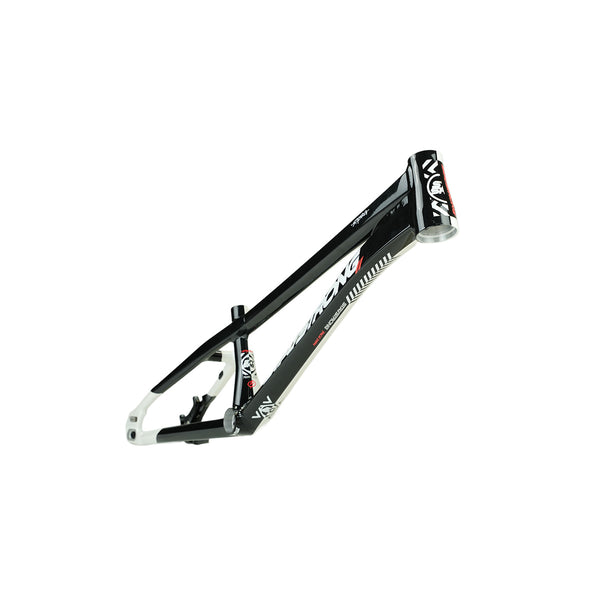

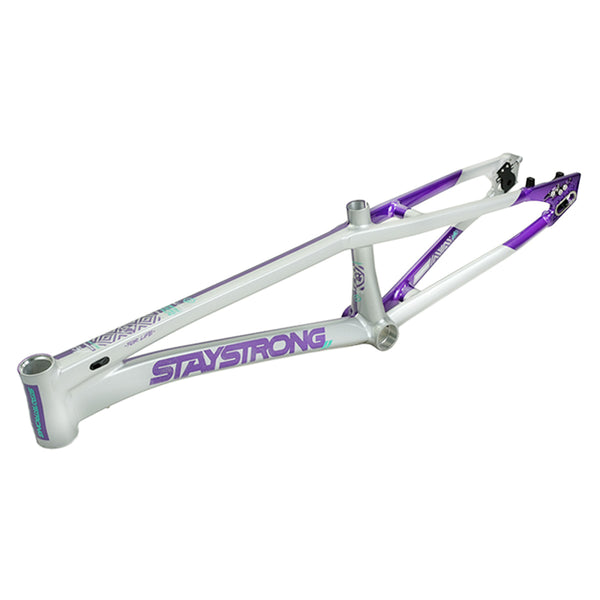

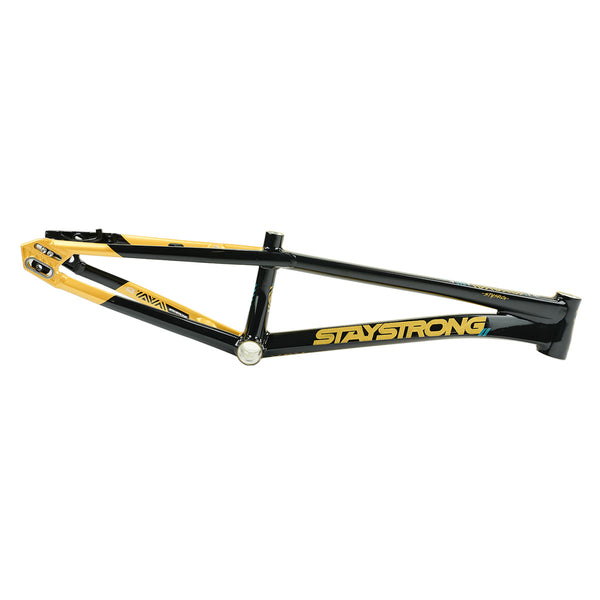

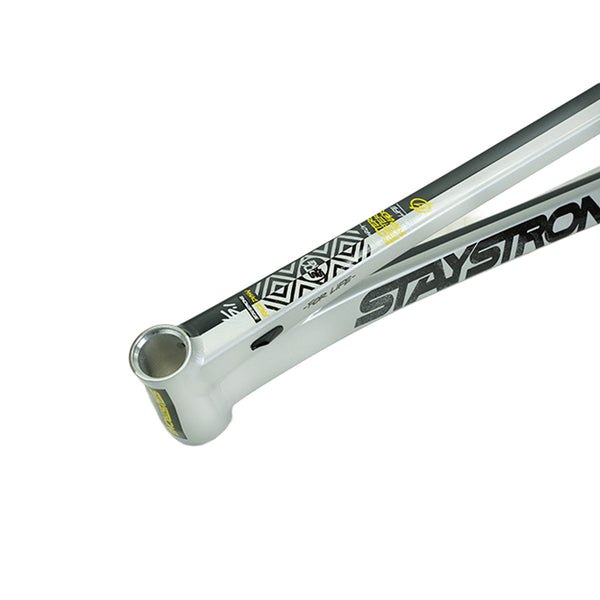

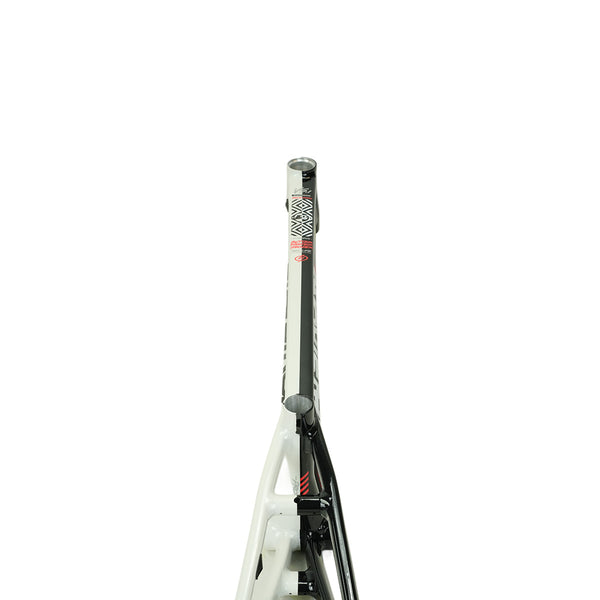

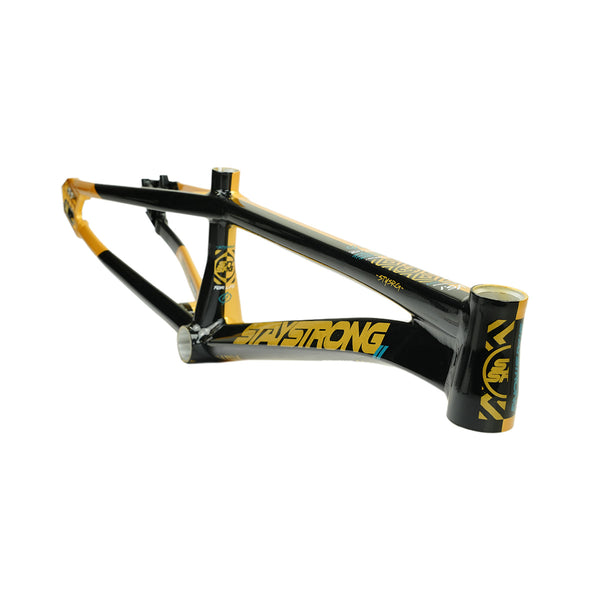

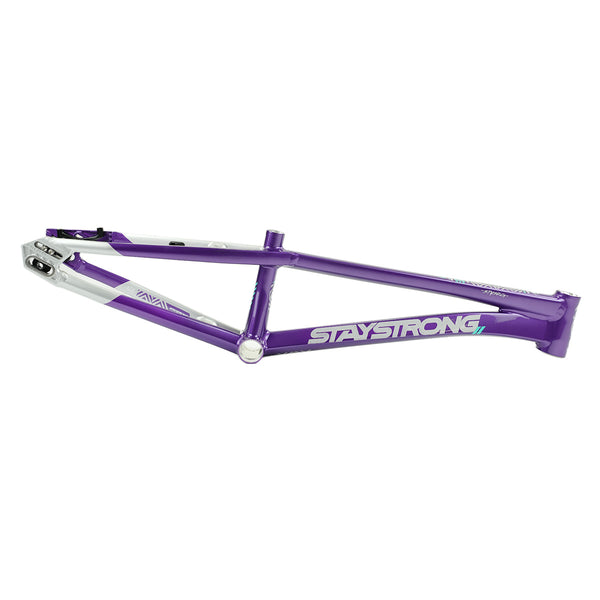

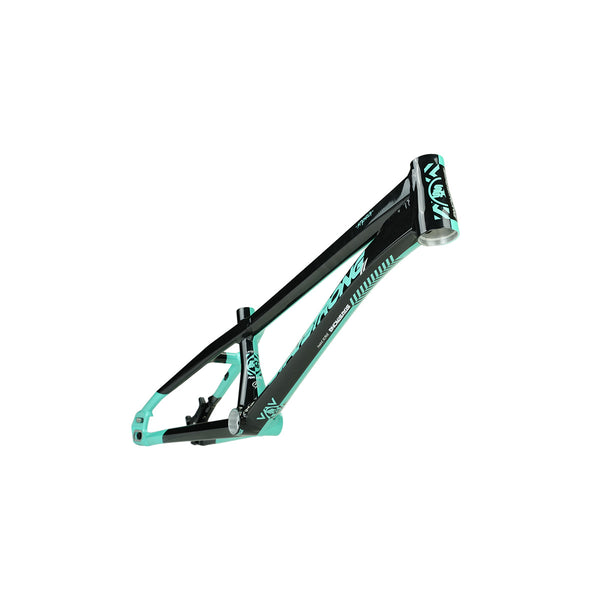

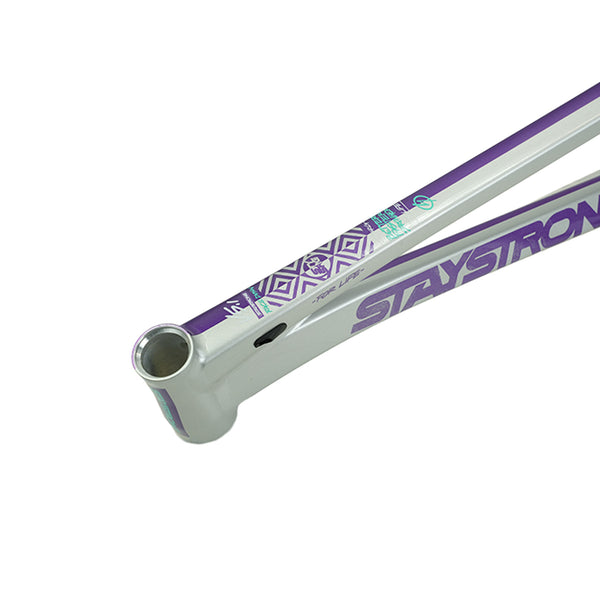

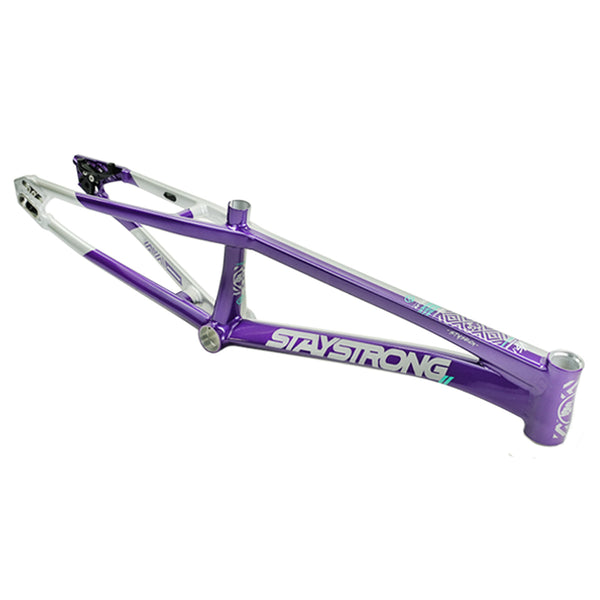

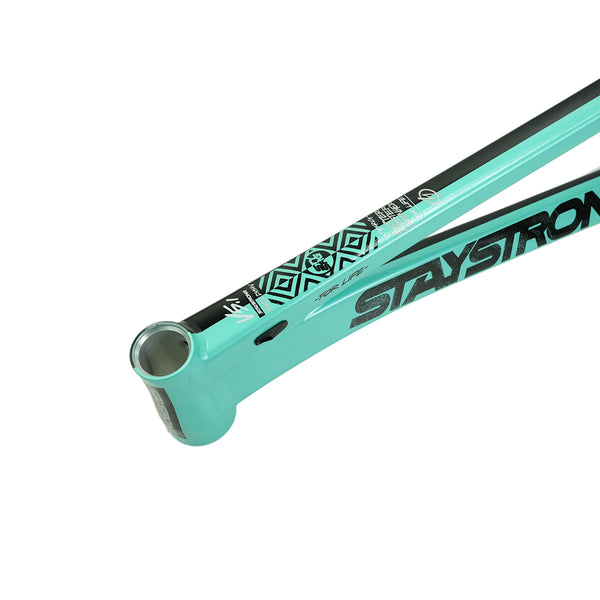

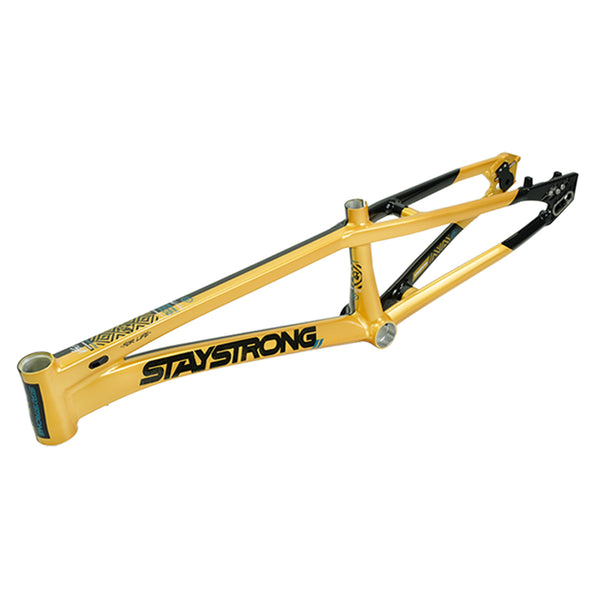

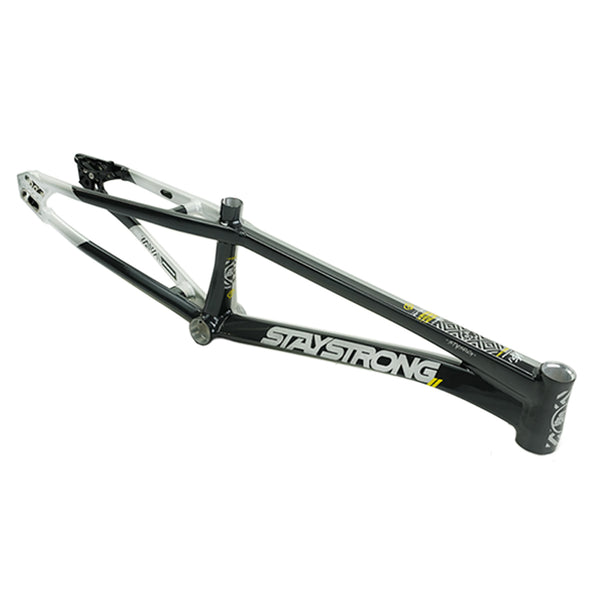

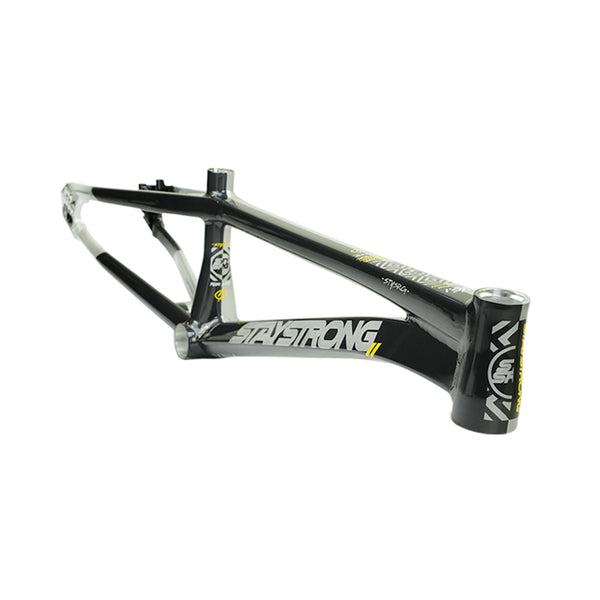

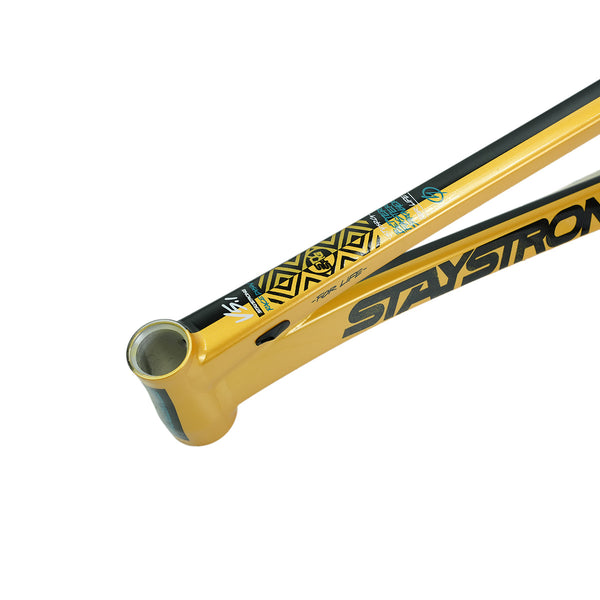

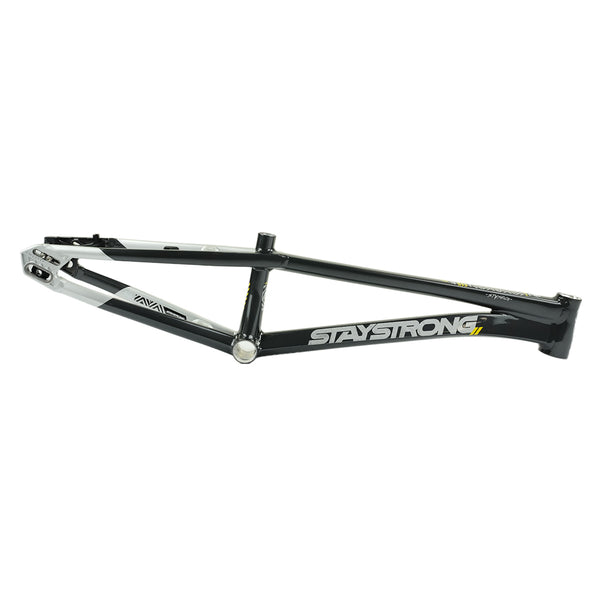

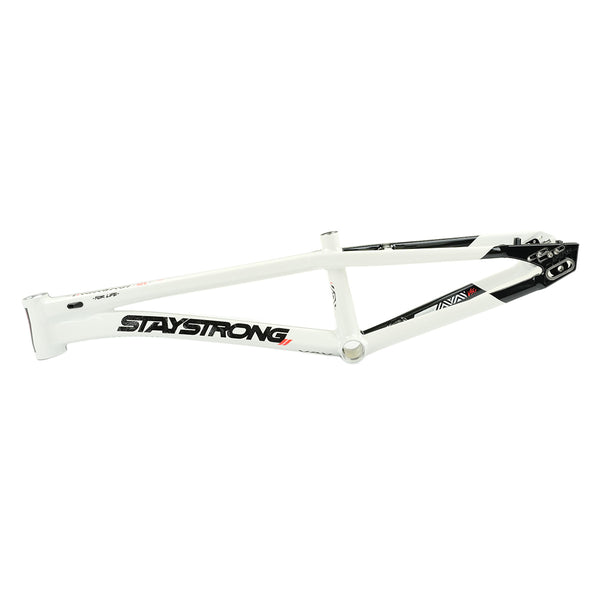

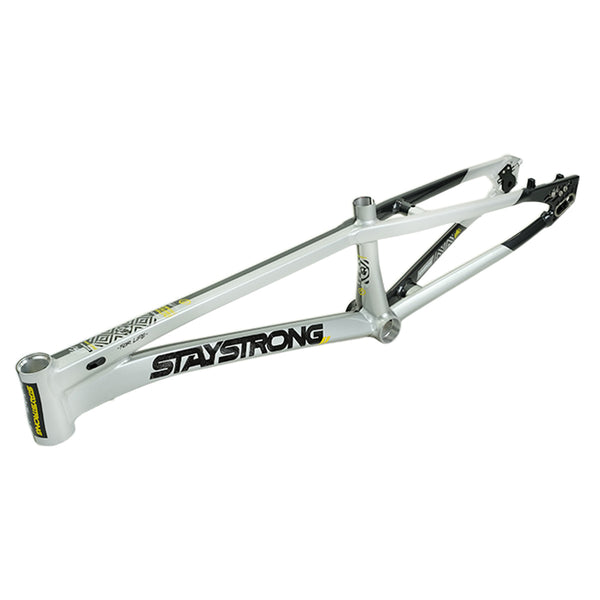

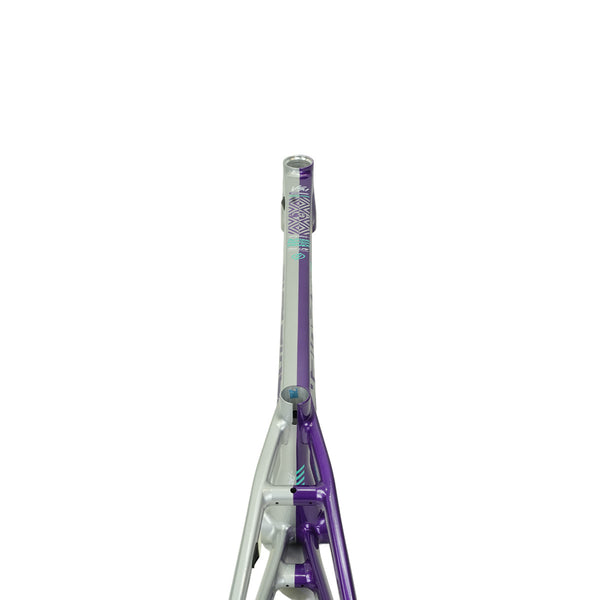

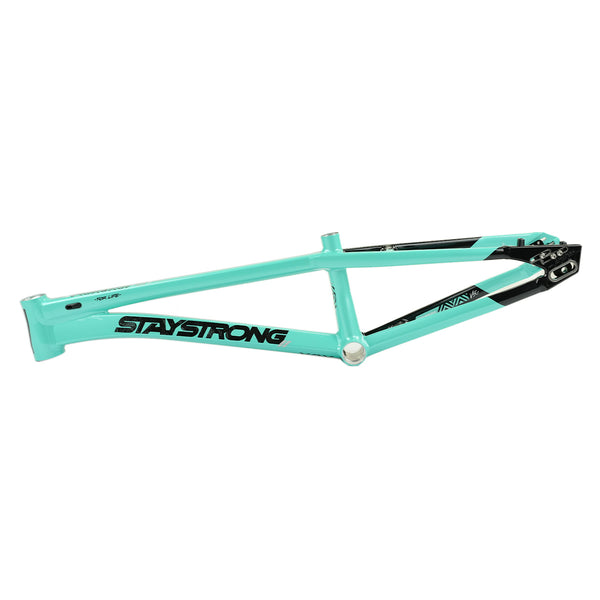

The new for life V5.1 frame from Stay Strong, featuring new and updated seat stay tubing design/shape, and internal brake cable for a clean look. Completely overhauled unique graphics with 1/2 and 1/2 left and right-side paint for those who want to stand out this season.

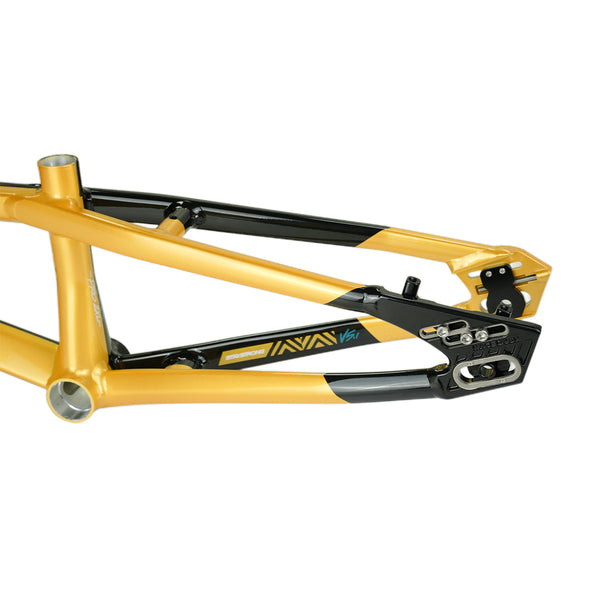

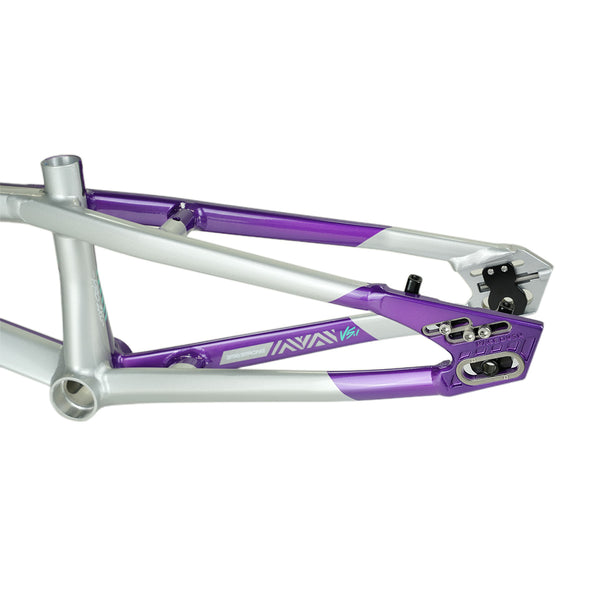

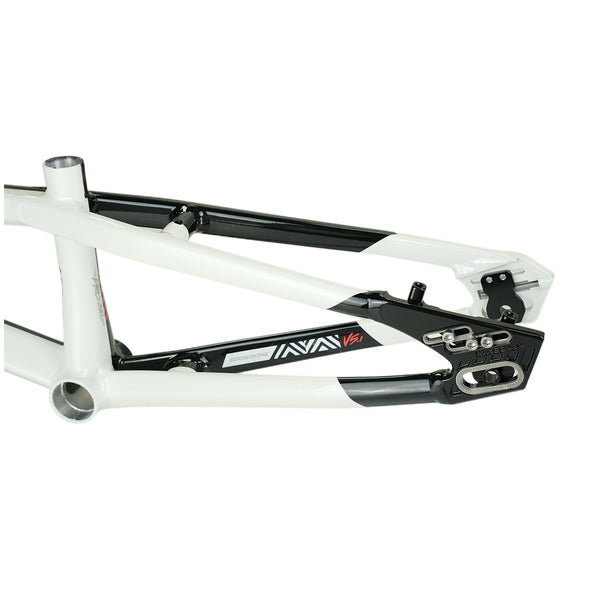

The V5.1 features the RACE DVSN dropout and 5-point dropout system, which fixes the inserts and disc hanger to the frame for both ease of use and stiffness. The custom dropout allows for a taller seat stay, which in turn adds to a stiffer and wider back end. The rear access chain tensioners also make it super simple to adjust your wheel when needed.
Vigorously tested by pro riders around the world, the V5.1 truly has race-winning geometry. Combined with triple and double butted tubing, tapered headtube, smooth welds and the TTL (to the line) bottom bracket, the V5.1 is Stay Strong’s best frame ever.
Features

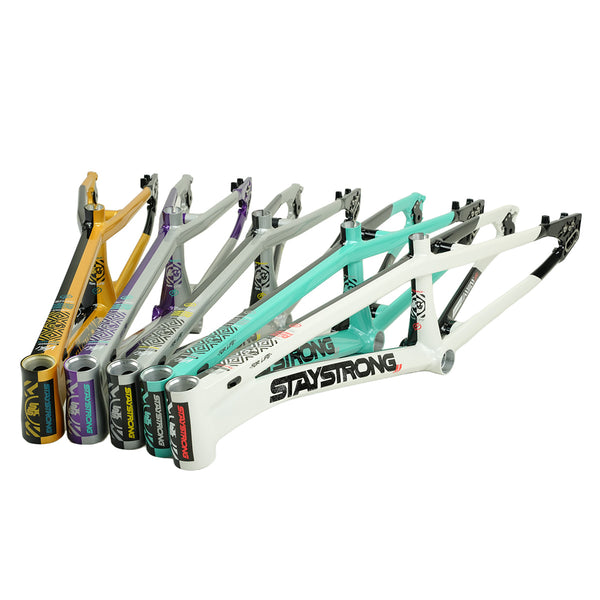

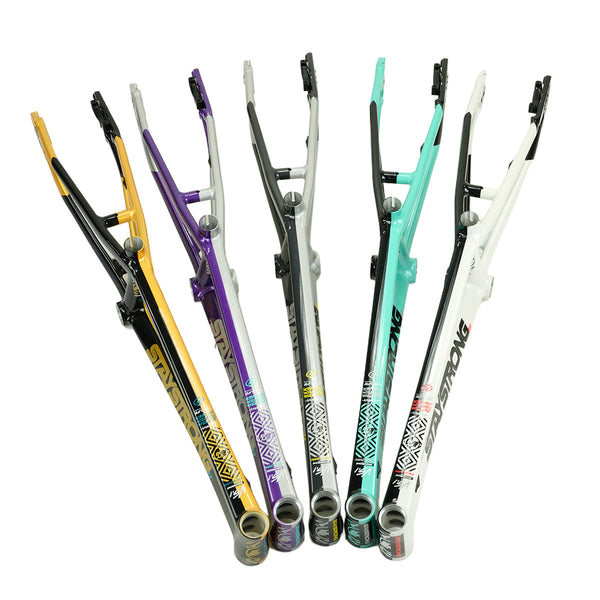

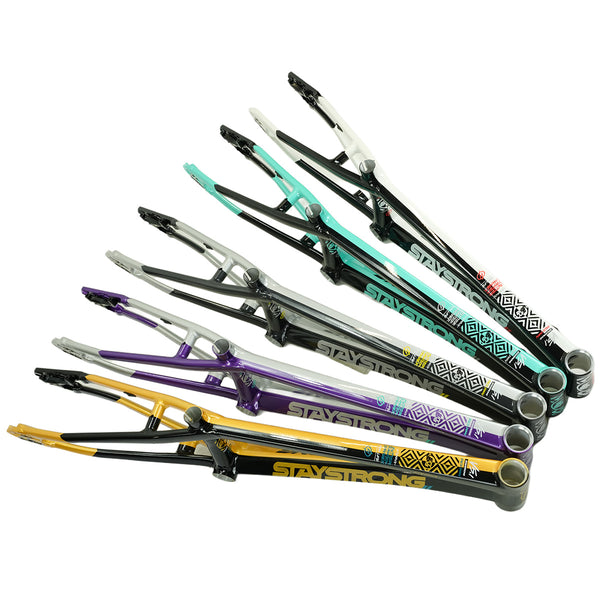

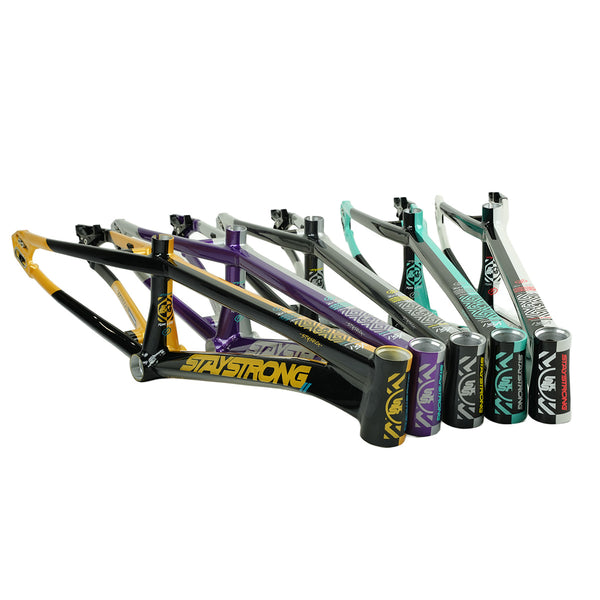

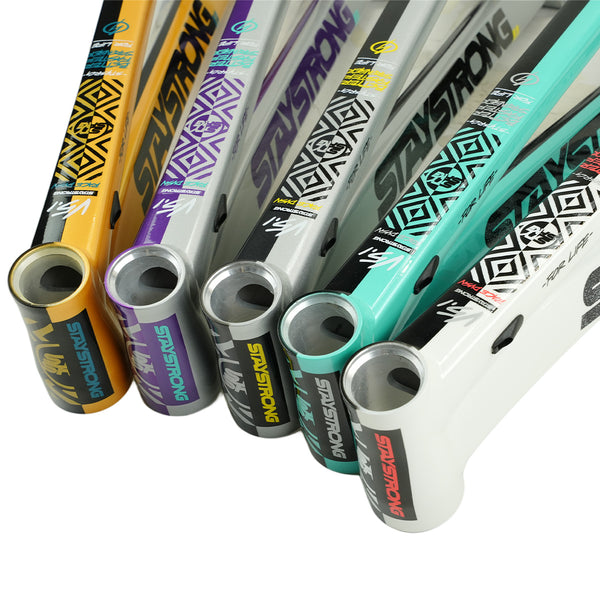

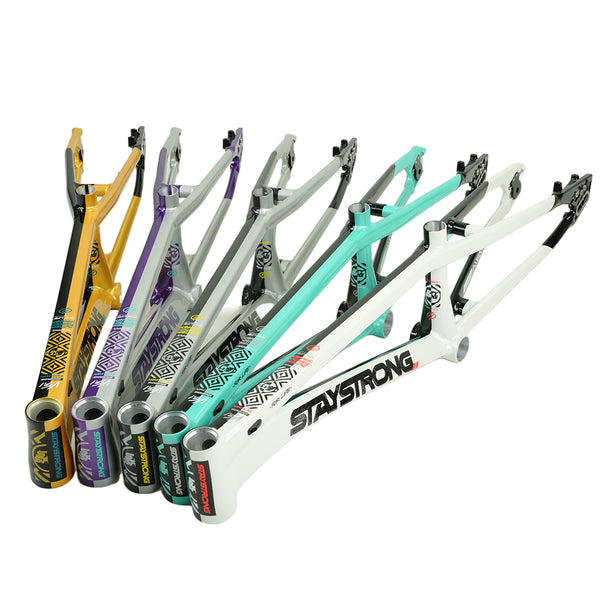

- All New Colours
- World's Main Making Geometry
- Disc Only - Post Mount
- Triple Butted And Double Butted Tubing
- Smooth Welds
- Integrated Chain Tensioners
- 10mm Dropouts
- 15mm Thru kit available separately (Pro Upwards ONLY)
- Headset: 1 1/8” Integrated (Youth Sizes) / 1.5” Tapered Integrated (Pro upwards)
- Bottom Bracket: Euro Bottom Bracket (Youth Sizes) / BB86 (Pro upwards)
- Seat Post size: 22.2mm (Youth sizes) / 31.6mm (Pro upwards)
- Seat Clamp Size: 25.4mm (Youth sizes) / 34.9mm (Pro upwards)
Mini:
- Top Tube Size: 17.5”
- Rider Area: 510.9MM
- Bottom Bracket Height: 269.2MM
- Head Tube Angle: 73
- Seat Tube Angle: 70
- Chain Stay: 13.4” – 12.4” Slammed
- Wheel Size: 20 x 1-1/8
- Weight: 1.118KG
Junior:
- Top Tube Size: 18.5”
- Rider Area: 530.3MM
- Bottom Bracket Height: 269.2MM
- Head Tube Angle: 73
- Seat Tube Angle: 70
- Chain Stay: 13.7” – 12.7” Slammed
- Wheel Size: 20 x 1-1/8
- Weight: 1.159KG
Expert:
- Top Tube Size: 19.5”
- Rider Area: 549.4MM
- Bottom Bracket Height: 269.2MM
- Head Tube Angle: 73
- Seat Tube Angle: 70
- Chain Stay: 14.3” – 13.3” Slammed
- Wheel Size: 20 x 1-3/8
- Weight: 1.232KG
Expert XL:
- Top Tube Size: 20.25”
- Rider Area: 563.9MM
- Bottom Bracket Height: 269.2MM
- Head Tube Angle: 73
- Seat Tube Angle: 70
- Chain Stay: 14.7” – 13.8” Slammed
- Wheel Size: 20 x 1-3/8
- Drop Outs: 10MM
- Weight: 1.257KG
Cruiser Expert XL:
- Top Tube Size: 20.625”
- Rider Area: 590.8MM
- Bottom Bracket Height: 299MM
- Head Tube Angle: 73
- Seat Tube Angle: 71
- Chain Stay: 16.1” – 15.1” Slammed
- Wheel Size: 20 x 1-3/8
Pro:
- Top Tube Size: 20.75”
- Rider Area: 567.4MM
- Bottom Bracket Height: 301.6MM
- Head Tube Angle: 74
- Seat Tube Angle: 72
- Chain Stay: 15” – 14” Slammed
- Wheel Size: 20 x 1.50”
- Weight: 1.578KG
Pro XL:
- Top Tube Size: 21.25”
- Rider Area: 582.5MM
- Bottom Bracket Height: 301.6MM
- Head Tube Angle: 74
- Seat Tube Angle: 72
- Chain Stay: 15.6” – 14.7” Slammed
- Wheel Size: 20 x 1.75”
- Weight: 1.600KG
Pro XXL:
- Top Tube Size: 21.75”
- Rider Area: 592.4MM
- Bottom Bracket Height: 301.6MM
- Head Tube Angle: 74
- Seat Tube Angle: 72
- Chain Stay: 15.6” – 14.7” Slammed
- Wheel Size: 20 x 1.75”
- Weight: 1.617KG
Pro XXXL:
- Top Tube Size: 22.25”
- Rider Area: 603.4MM
- Bottom Bracket Height: 301.6MM
- Head Tube Angle: 74
- Seat Tube Angle: 72
- Chain Stay: 15.6” – 14.7” Slammed
- Wheel Size: 20 x 1.75”
- Weight: 1.628KG
Pro XXXXL:
- Top Tube Size: 22.75”
- Rider Area: 614.3MM
- Bottom Bracket Height: 301.6MM
- Head Tube Angle: 74
- Seat Tube Angle: 72
- Chain Stay: 15.6” – 14.7” Slammed
- Wheel Size: 20 x 1.75”
- Weight: 1.647KG
Cruiser:
- Top Tube Size: 21.75”
- Rider Area: 610.4MM
- Bottom Bracket Height: 317.6MM
- Head Tube Angle: 73
- Seat Tube Angle: 70
- Chain Stay: 16.1” – 15.1” Slammed
- Wheel Size: 24 x 1.75”
- Weight: 1.640KG
Cruiser XXL:
- Top Tube Size: 22.75”
- Rider Area: 629MM
- Bottom Bracket Height: 317.6MM
- Head Tube Angle: 73
- Seat Tube Angle: 70
- Chain Stay: 16.1” – 15.1” Slammed
- Wheel Size: 24 x 1.75”
- Weight: 1.645KG
